Description

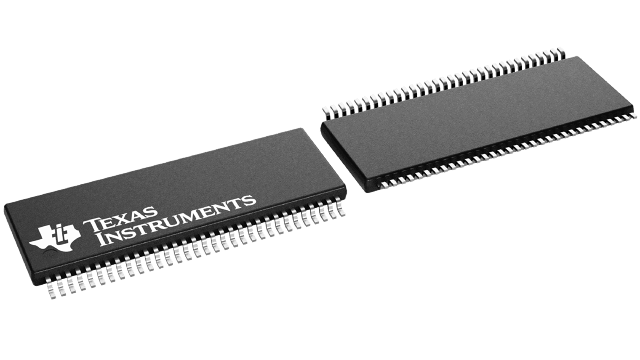

SN65LVDT386DGGR Texas Instruments - Yeehing Electronics
16-channel receiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.64 |
| 100 — 249 | 7.859 |
| 250 — 999 | 6.177 |
| 1,000 + | 3.67 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Receiver |
| Number of Receivers | 16 Receiver |
| Data Rate | 250 Mb/s |
| Input Type | LVDS |
| Output Type | LVTTL |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-64 |
| Packaging | Reel |
| Series | SN65LVDT386 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 70 mA |
| Operating Supply Voltage | 3.3 V |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 2000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
| SN65LVDT386DGGR Datasheet |
More Information
This family of 4-, 8-, or 16-differential line receivers (with optional integrated termination) implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3-V supply rail.
