Texas Instruments
SN65LVP17DRFT
SN65LVP17DRFT
Regular price
$1.47 USD
Regular price
Sale price
$1.47 USD
Unit price
per
Couldn't load pickup availability
SN65LVP17DRFT Texas Instruments - Yeehing Electronics
2.5-V/3.3-V oscillator gain stage/buffer with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.871 |
| 100 — 249 | 3.156 |
| 250 — 999 | 2.481 |
| 1,000 + | 1.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Oscillator Gain Stage Buffer |
| Number of Drivers | 1 Driver |
| Number of Receivers | 1 Receiver |
| Data Rate | 4000 Mb/s |
| Input Type | Differential |
| Output Type | LVPECL |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.375 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

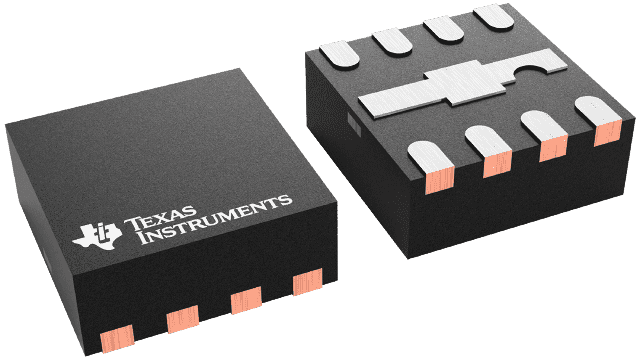

| Package / Case | WSON-8 |
| Packaging | Reel |
| Height | 0.53 mm |
| Length | 2 mm |
| Series | SN65LVP17 |
| Width | 2 mm |
| Brand | Texas Instruments |
| Operating Supply Current | 48 mA |
| Operating Supply Voltage | 2.375 V to 3.6 V |
| Pd - Power Dissipation | 161 mW |
| Product Type | LVDS Interface IC |
| Propagation Delay Time | 340 ps |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| SN65LVP17DRFT Datasheet |
More Information
These four devices are high-frequency oscillator gain stages supporting both LVPECL or LVDS on the high gain outputs in 3.3-V or 2.5-V systems. Additionally, provides the option of both single-ended input (PECL levels on the SN65LVx16) and fully differential inputs on the SN65LVx17.
