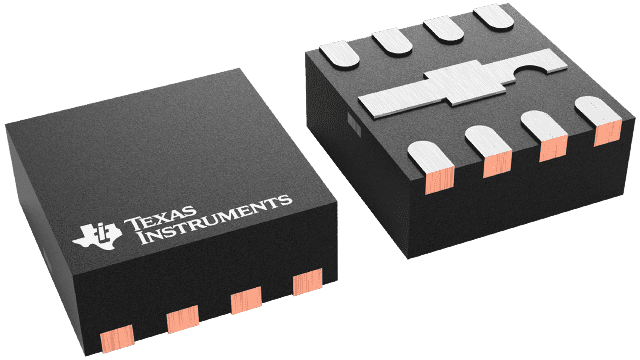

SN65LVP19DRFT Texas Instruments - Yeehing Electronics

2.5-V/3.3-V oscillator gain stage/buffer with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	4.08
100 — 249	3.575
250 — 999	2.507
1,000 +	1.41

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	Oscillator Gain Stage Buffer
Number of Drivers	1 Driver
Number of Receivers	1 Receiver
Data Rate	2000 Mb/s
Input Type	Differential
Output Type	LVPECL
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.375 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WSON-8
Packaging	Reel
Height	0.53 mm
Length	2 mm
Series	SN65LVP19
Width	2 mm
Brand	Texas Instruments
Operating Supply Current	36 mA
Operating Supply Voltage	2.375 V to 3.6 V
Pd - Power Dissipation	161 mW
Product Type	LVDS Interface IC
Propagation Delay Time	340 ps
Factory Pack Quantity	250
Subcategory	Interface ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

SN65LVP19DRFT Datasheet

More Information

These four devices are high frequency oscillator gain stages supporting both LVPECL or LVDS on the high gain outputs in 3.3-V or 2.5-V systems. Additionally, provides the option of both single-ended input (PECL levels on the SN65LVx18) and fully differential inputs on the SN65LVx19.
