Texas Instruments
SN65LVP20DRFT
SN65LVP20DRFT
Regular price
$1.80 USD
Regular price
Sale price
$1.80 USD
Unit price
per
Couldn't load pickup availability
SN65LVP20DRFT Texas Instruments - Yeehing Electronics
4-Gbps PECL to LVPECL repeater
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.736 |
| 100 — 249 | 3.861 |
| 250 — 999 | 3.035 |
| 1,000 + | 1.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Repeater/Translator |
| Number of Drivers | 1 Driver |
| Number of Receivers | 1 Receiver |
| Data Rate | 4000 Mb/s |
| Input Type | Differential |
| Output Type | LVPECL |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.375 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

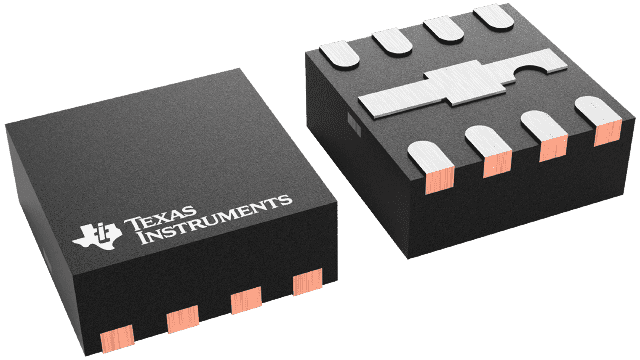

| Package / Case | WSON-8 |
| Packaging | Reel |
| Series | SN65LVP20 |
| Brand | Texas Instruments |
| Operating Supply Current | 45 mA |
| Operating Supply Voltage | 2.5 V, 3.3 V |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| SN65LVP20DRFT Datasheet |
More Information
The SN65LVDS20 and SN65LVP20 are a high-speed differential receiver and driver connected as a repeater. The receiver accepts low-voltage positive-emitter-coupled logic (PECL) at signaling rates up to 4 Gbps and repeats it as either an LVDS or PECL output signal. The signal path through the device is differential for low radiated emissions and minimal added jitter.
