Texas Instruments
SN65MLVD080DGGR
SN65MLVD080DGGR
Regular price
$2.74 USD
Regular price
Sale price
$2.74 USD
Unit price
per
Couldn't load pickup availability

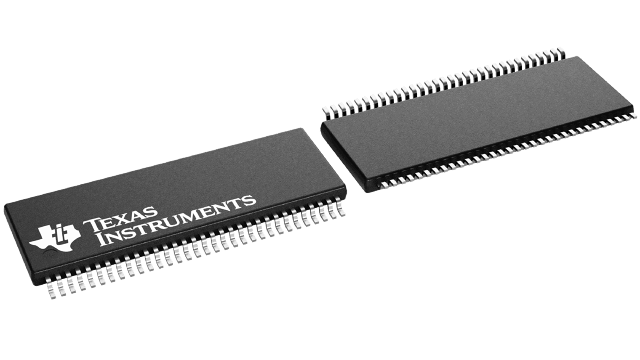

SN65MLVD080DGGR Texas Instruments - Yeehing Electronics
8-channel half-duplex M-LVDS transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.858 |
| 100 — 249 | 3.96 |
| 250 — 999 | 3.113 |
| 1,000 + | 2.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Transceiver |
| Number of Drivers | 8 Driver |
| Number of Receivers | 8 Receiver |
| Data Rate | 250 Mb/s |
| Input Type | LVTTL, M-LVDS |
| Output Type | M-LVDS, LVTTL |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-64 |
| Packaging | Reel |
| Series | SN65MLVD080 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 180 mA |
| Operating Supply Voltage | 3.3 V |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 2000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
| SN65MLVD080DGGR Datasheet |
More Information
The SN65MLVD080 and SN65MLVD082 provide eight half-duplex transceivers for transmitting and receiving Multipoint-Low-Voltage Differential Signals in full compliance with the TIA/EIA-899 (M-LVDS) standard, which are optimized to operate at signaling rates up to 250 Mbps. The driver outputs have been designed to support multipoint buses presenting loads as low as 30- and incorporates controlled transition times to allow for stubs off of the backbone transmission line.
