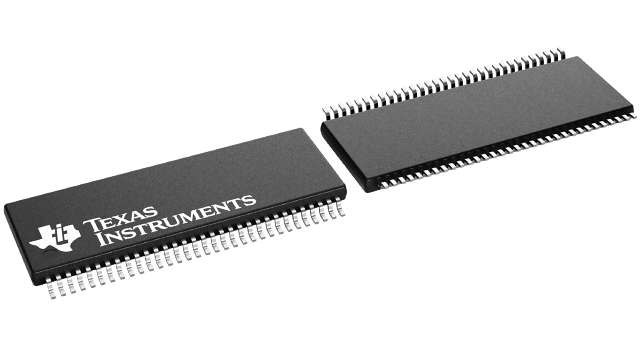

SN65MLVD082DGGR Texas Instruments - Yeehing Electronics

8-channel half-duplex M-LVDS transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	4.858
100 — 249	3.96
250 — 999	3.113
1,000 +	1.85

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SN65MLVD082DGGR Datasheet

More Information

The SN65MLVD080 and SN65MLVD082 provide eight half-duplex transceivers for transmitting and receiving Multipoint-Low-Voltage Differential Signals in full compliance with the TIA/EIA-899 (M-LVDS) standard, which are optimized to operate at signaling rates up to 250 Mbps. The driver outputs have been designed to support multipoint buses presenting loads as low as 30- and incorporates controlled transition times to allow for stubs off of the backbone transmission line.
