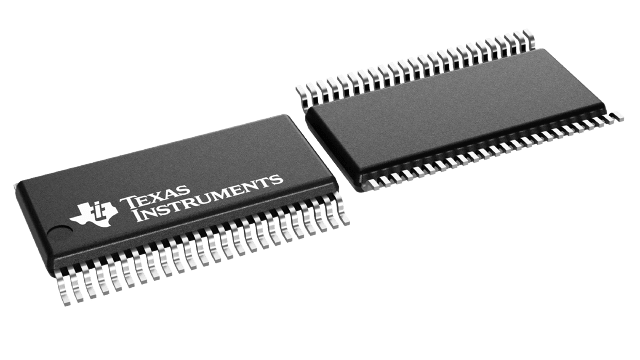

SN74ABT162244DGVR Texas Instruments - Yeehing Electronics
16-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.237 |
| 100 — 249 | 0.952 |
| 250 — 999 | 0.701 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 16 Input |
| Number of Output Lines | 3 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-48 |
| Packaging | Reel |
| Function | Buffer/Line Driver |
| Height | 1.05 mm |
| Length | 9.7 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Quiescent Current | 30 mA |
| Series | SN74ABT162244 |
| Technology | BiCMOS |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Family | ABT |
| Logic Type | Buffer and Driver |
| Number of Channels | 16 |
| Supply Current - Max | 30000 uA |
| High Level Output Current | - 12 mA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 12 mA |
| Operating Supply Current | 30 uA |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 4 ns |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.004356 oz |
For more information, please refer to datasheet
Documents
| SN74ABT162244DGVR Datasheet |
More Information
The ABT162244 devices are 16-bit buffers and line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide noninverting outputs and symmetrical active-low output-enable (OE) inputs.
