Description

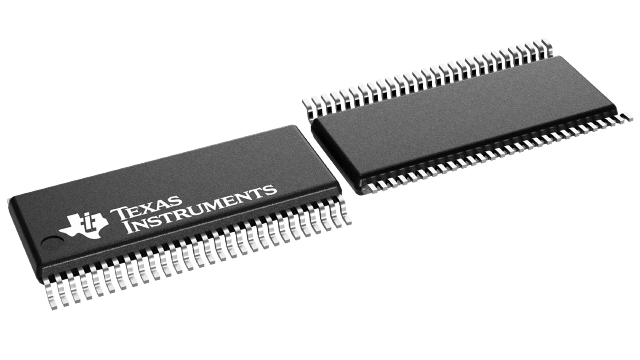

SN74ABT16823DGVR Texas Instruments - Yeehing Electronics
18-Bit Bus Interface Flip-Flops With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.307 |
| 100 — 249 | 2.021 |
| 250 — 999 | 1.417 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Flip Flops |
| RoHS | Y |
| Number of Circuits | 2 |
| Logic Family | ABT |
| Logic Type | Bus Interface Flip-Flop |
| Polarity | Non-Inverting |
| Input Type | TTL |
| Output Type | 3-State |
| Propagation Delay Time | 5.5 ns |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 64 mA |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Function | D-Type Bus Interface |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 80 mA |
| Series | SN74ABT16823 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Number of Channels | 18 |
| Number of Input Lines | 9 |
| Number of Output Lines | 9 |
| Operating Supply Voltage | 5 V |
| Product Type | Flip Flops |
| Reset Type | Master Reset |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74ABT16823DGVR Datasheet |
More Information
These 18-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing wider buffer registers, I/O ports, bidirectional bus drivers with parity, and working registers.
