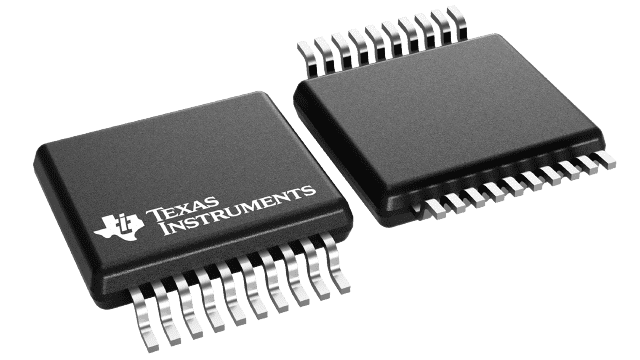

SN74ABT245BDGVR Texas Instruments - Yeehing Electronics

Octal Bus Transceivers with 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.716
100 — 249	0.551
250 — 999	0.406
1,000 +	0.20

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Bus Transceivers
RoHS	Y
Logic Family	ABT
Input Level	TTL
Output Level	TTL
Output Type	3-State
High Level Output Current	- 32 mA
Low Level Output Current	64 mA
Propagation Delay Time	3.9 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	TVSOP-20
Packaging	Reel
Function	Octal bus transceivers are designed for asynchronous communication between data buses.
Height	1.05 mm
Length	5 mm
Number of Circuits	8
Operating Temperature Range	- 40 C to + 85 C
Product	Standard Transceiver
Quiescent Current	22 mA
Series	SN74ABT245B
Technology	BiCMOS
Width	4.4 mm
Brand	Texas Instruments
Mounting Style	SMD/SMT
Number of Channels	8
Supply Current - Max	30 mA
Operating Supply Voltage	4.5 V to 5.5 V
Polarity	Non-Inverting
Product Type	Bus Transceivers
Factory Pack Quantity	2000
Subcategory	Logic ICs
Unit Weight	0.002123 oz

For more information, please refer to datasheet

Documents

SN74ABT245BDGVR Datasheet

More Information

These octal bus transceivers are designed for asynchronous communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.
