Texas Instruments
SN74ABT8646DL
SN74ABT8646DL
Regular price
$4.43 USD
Regular price
Sale price
$4.43 USD
Unit price
per
Couldn't load pickup availability

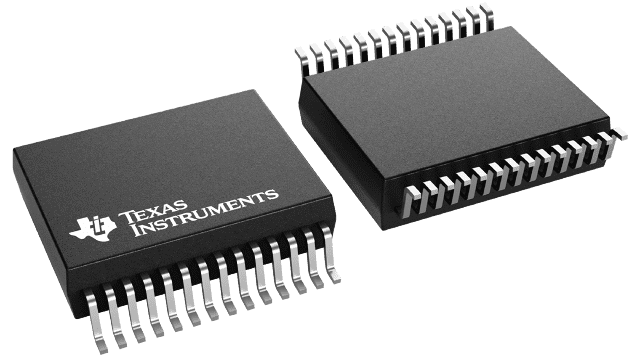

SN74ABT8646DL Texas Instruments - Yeehing Electronics
Scan Test Devices With Octal Bus Transceivers And Registers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.64 |
| 100 — 249 | 9.489 |
| 250 — 999 | 7.458 |
| 1,000 + | 4.43 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Specialty Function Logic |
| RoHS | Y |
| Series | SN74ABT8646 |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | SSOP-28 |
| Packaging | Reel |
| Function | Scan Test Device with Bus Transceiver / Register |
| Number of Circuits | 1 |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Product Type | Specialty Function Logic |
| Propagation Delay Time | 5.3 ns |
| Factory Pack Quantity | 1000 |
| Subcategory | Logic ICs |
| Tradename | SCOPE |
| Unit Weight | 0.025045 oz |
For more information, please refer to datasheet
Documents
| SN74ABT8646DL Datasheet |
More Information
The ABT8646 and scan test devices with octal bus transceivers and registers are members of the Texas Instruments SCOPE testability integrated-circuit family. This family of devices supports IEEE Standard 1149.1-1990 boundary scan to facilitate testing of complex circuit-board assemblies. Scan access to the test circuitry is accomplished via the 4-wire test access port (TAP) interface.
