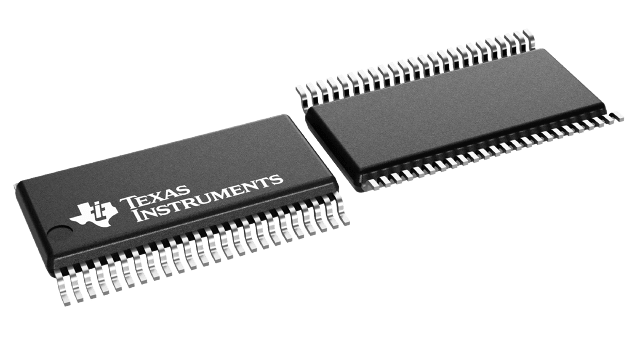

SN74ABTH16245DGVR Texas Instruments - Yeehing Electronics

16-Bit Bus Transceivers With 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.304
100 — 249	1.003
250 — 999	0.739
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Bus Transceivers
RoHS	Y
Logic Family	ABT
Input Level	TTL
Output Level	TTL
Output Type	3-State
High Level Output Current	- 32 mA
Low Level Output Current	64 mA
Propagation Delay Time	4.2 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	TVSOP-48
Packaging	Reel
Function	These devices can be used as two 8-bit transceivers or one 16-bit transceiver
Height	1.05 mm
Length	9.7 mm
Number of Circuits	2
Operating Temperature Range	- 40 C to + 85 C
Product	Standard Transceiver
Series	SN74ABTH16245
Technology	BiCMOS
Width	4.4 mm
Brand	Texas Instruments
Mounting Style	SMD/SMT
Number of Channels	16
Supply Current - Max	32 mA
Operating Supply Voltage	4.5 V to 5.5 V
Polarity	Non-Inverting
Product Type	Bus Transceivers
Factory Pack Quantity	2000
Subcategory	Logic ICs
Unit Weight	0.004356 oz

For more information, please refer to datasheet

Documents

SN74ABTH16245DGVR Datasheet

More Information

The 'ABTH16245 devices are 16-bit noninverting 3-state transceivers that provide synchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.
