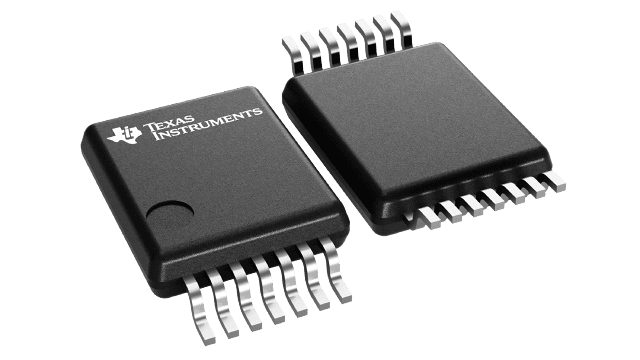

SN74AHC125DGVR Texas Instruments - Yeehing Electronics

4-ch, 2-V to 5.5-V buffers with 3-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.238
100 — 249	0.162
250 — 999	0.125
1,000 +	0.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Buffers & Line Drivers
RoHS	Y
Number of Input Lines	4 Input
Number of Output Lines	4 Output
Polarity	Non-Inverting
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-14
Packaging	Reel
Function	Buffer/Line Driver
Height	1.05 mm
Length	3.6 mm
Operating Temperature Range	- 40 C to + 125 C
Output Type	3-State
Quiescent Current	4 uA
Series	SN74AHC125
Technology	CMOS
Width	4.4 mm
Brand	Texas Instruments
Logic Family	AHC
Logic Type	CMOS
Number of Channels	4
Supply Current - Max	4 uA
High Level Output Current	- 8 mA
Input Signal Type	Single-Ended
Low Level Output Current	8 mA
Operating Supply Current	40 uA
Operating Supply Voltage	2 V to 5.5 V
Product Type	Buffers & Line Drivers
Propagation Delay Time	11.5 ns, 7.5 ns
Factory Pack Quantity	2000
Subcategory	Logic ICs
Unit Weight	0.001474 oz

For more information, please refer to datasheet

Documents

SN74AHC125DGVR Datasheet

More Information

The SNx4AHC125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. When OE is low, the respective gate passes the data from the A input to its Y output.
