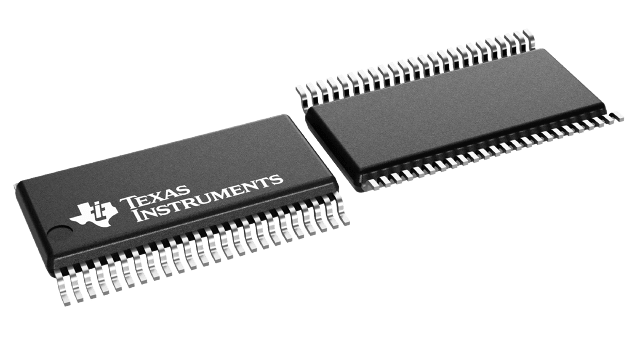

SN74AHC16541DGVR Texas Instruments - Yeehing Electronics

16-ch, 2-V to 5.5-V buffers with 3-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.294
100 — 249	0.996
250 — 999	0.733
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Buffers & Line Drivers
RoHS	Y
Number of Input Lines	16 Input
Number of Output Lines	16 Output
Polarity	Non-Inverting
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-48
Packaging	Reel
Function	Buffer/Line Driver
Height	1.05 mm
Length	9.7 mm
Operating Temperature Range	- 40 C to + 85 C
Output Type	3-State
Quiescent Current	4 uA
Series	SN74AHC16541
Technology	CMOS
Width	4.4 mm
Brand	Texas Instruments
Logic Family	AHC
Logic Type	CMOS
Number of Channels	16
Supply Current - Max	4 uA
High Level Output Current	- 8 mA
Input Signal Type	Single-Ended
Low Level Output Current	8 mA
Operating Supply Current	40 uA
Operating Supply Voltage	2.5 V
Product Type	Buffers & Line Drivers
Propagation Delay Time	11.9 ns, 8 ns
Factory Pack Quantity	2000
Subcategory	Logic ICs
Unit Weight	0.004356 oz

For more information, please refer to datasheet

Documents

SN74AHC16541DGVR Datasheet

More Information

The 'AHC16541 devices are noninverting 16-bit buffers composed of two 8-bit sections with separate output-enable signals. For either 8-bit buffer section, the two output-enable (1OE1 and 1OE2 or 2OE1 and 2OE2) inputs must be low for the corresponding Y outputs to be active. If either output-enable input is high, the outputs of that 8-bit buffer section are in the high-impedance state.
