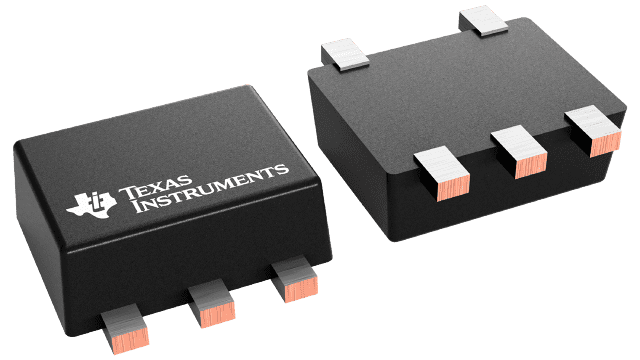

SN74AHC1G00DRLR Texas Instruments - Yeehing Electronics
Single 2-input, 2-V to 5.5-V NAND gate
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.169 |
| 100 — 249 | 0.115 |
| 250 — 999 | 0.089 |
| 1,000 + | 0.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | NAND |
| Logic Family | 74AHC |
| Number of Gates | 1 Gate |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 8 mA |
| Low Level Output Current | 8 mA |
| Propagation Delay Time | 11.4 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-5X3-5 |
| Packaging | Reel |
| Function | NAND |
| Height | 0.55 mm |
| Length | 1.6 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | SN74AHC1G00 |
| Width | 1.2 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Operating Supply Voltage | 2.5 V, 3.3 V, 5 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 4000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000099 oz |
For more information, please refer to datasheet
Documents
| SN74AHC1G00DRLR Datasheet |
More Information
The SN74AHC1G00 performs the Boolean function Y = A • B or Y = A + B in positive logic.
