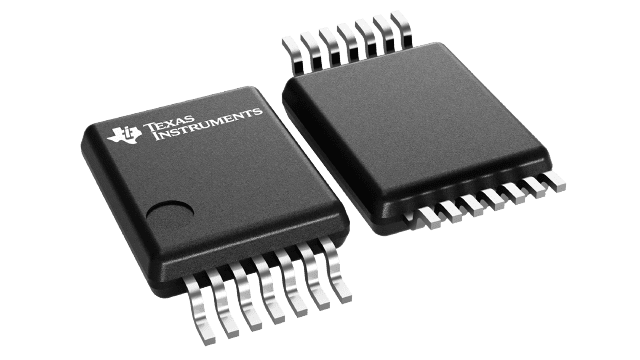

SN74AHCT126DGVR Texas Instruments - Yeehing Electronics
4-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.232 |
| 100 — 249 | 0.158 |
| 250 — 999 | 0.122 |
| 1,000 + | 0.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 4 Input |
| Number of Output Lines | 4 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-14 |
| Packaging | Reel |
| Function | Buffer/Line Driver |
| Height | 1.05 mm |
| Length | 3.6 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | 3-State |
| Quiescent Current | 2 uA |
| Series | SN74AHCT126 |
| Technology | CMOS |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Family | AHCT |
| Logic Type | CMOS |
| Number of Channels | 4 |
| Supply Current - Max | 2 uA |
| High Level Output Current | - 8 mA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 8 mA |
| Operating Supply Current | 20 uA |
| Operating Supply Voltage | 5 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 7.5 ns |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74AHCT126DGVR Datasheet |
More Information
The SNxAHCT126 devices are quadruple-bus buffer gates featuring independent line drivers with 3-state outputs.
