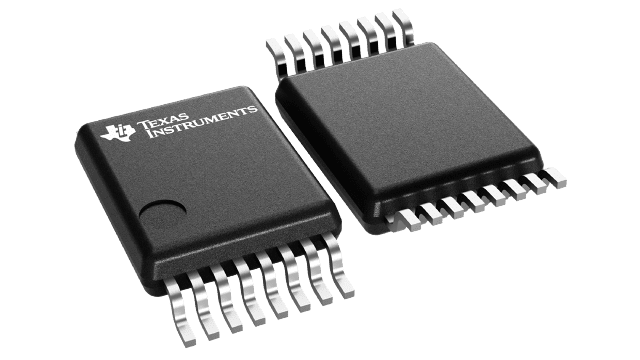

SN74AHCT157DGVR Texas Instruments - Yeehing Electronics
Quadruple 2-Line To 1-Line Data Selectors / Multiplexers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.313 |
| 100 — 249 | 0.213 |
| 250 — 999 | 0.164 |
| 1,000 + | 0.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Encoders, Decoders, Multiplexers & Demultiplexers |
| RoHS | Y |
| Product | Selectors / Multiplexers |
| Logic Family | AHCT |
| Number of Bits | 4 bit |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| Propagation Delay Time | 7.5 ns |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-16 |
| Packaging | Reel |
| Function | Quad 2-to-1 Data |
| Height | 1.05 mm |
| Input Voltage | 2.0 V to 0.8 V |
| Length | 3.6 mm |
| Number of Circuits | Quad |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Current | 8 mA |
| Output Voltage | - 0.5 V to 7 V |
| Series | SN74AHCT157 |
| Technology | CMOS |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | Data Selectors/Multiplexers |
| High Level Output Current | - 8 mA |
| Low Level Output Current | 8 mA |
| Maximum Clock Frequency | 70 MHz |
| Operating Supply Voltage | 5 V |
| Product Type | Encoders, Decoders, Multiplexers & Demultiplexers |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001478 oz |
For more information, please refer to datasheet
Documents
| SN74AHCT157DGVR Datasheet |
More Information
These quadruple 2-line to 1-line data selectors/multiplexers are designed for 4.5-V to 5.5-V VCC operation.
