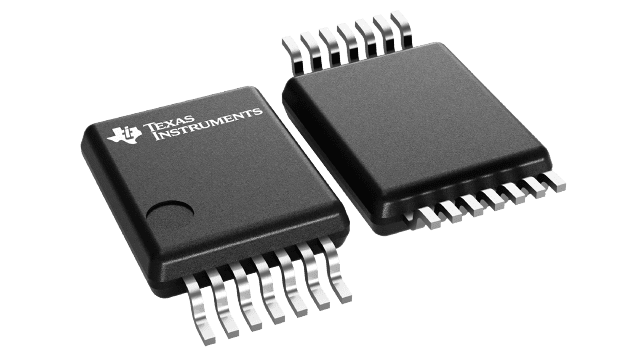

SN74AHCT86DGVR Texas Instruments - Yeehing Electronics
4-ch, 2-input, 4.5-V to 5.5-V XOR (exclusive OR) gates with TTL-compatible CMOS inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.241 |
| 100 — 249 | 0.164 |
| 250 — 999 | 0.126 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | XOR |
| Logic Family | AHCT |
| Number of Gates | 4 Gate |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 8 mA |
| Low Level Output Current | 8 mA |
| Propagation Delay Time | 10 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-14 |
| Packaging | Reel |
| Function | Quad 2 Input |
| Height | 1.05 mm |
| Input Type | TTL |
| Length | 3.6 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | CMOS |
| Series | SN74AHCT86 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | 2-Input Exclusive-OR |
| Number of Bits | 4 bit |
| Operating Supply Current | 20 uA |
| Operating Supply Voltage | 5 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74AHCT86DGVR Datasheet |
More Information
The SNx4AHCT86 devices are quadruple 2-input exclusive-OR gates. These devices perform the Boolean function Y = A × B or Y = AB + AB in positive logic.
