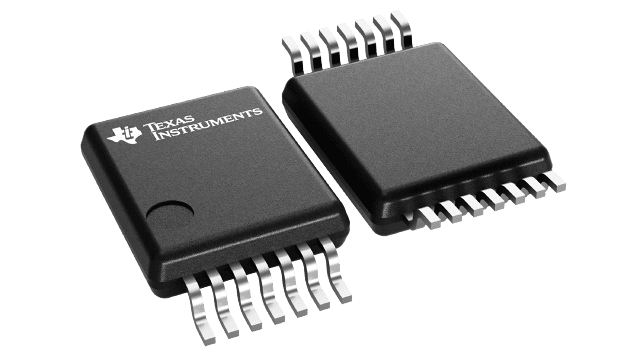

SN74ALVC10DGVR Texas Instruments - Yeehing Electronics
3-ch, 3-input, 1.65-V to 3.6-V NAND gates
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.293 |
| 100 — 249 | 0.199 |
| 250 — 999 | 0.154 |
| 1,000 + | 0.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | NAND |
| Logic Family | ALVC |
| Number of Gates | 3 Gate |
| Number of Input Lines | 3 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 24 mA |
| Low Level Output Current | 24 mA |
| Propagation Delay Time | 3 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-14 |
| Packaging | Reel |
| Function | NAND |
| Height | 1.05 mm |
| Input Type | TTL |
| Length | 3.6 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | TTL |
| Series | SN74ALVC10 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | 3-Input NAND |
| Number of Bits | 3 bit |
| Operating Supply Current | 10 uA |
| Operating Supply Voltage | 3.3 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74ALVC10DGVR Datasheet |
More Information
This triple 3-input positive-NAND gate is designed for 1.65-V to 3.6-V VCC operation.
