Texas Instruments

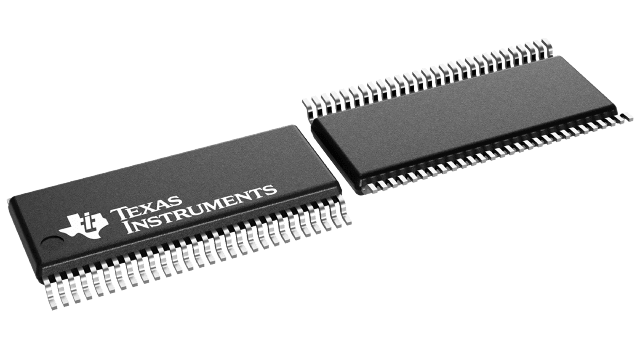

SN74ALVC162836DGVR
SN74ALVC162836DGVR
Regular price
$1.69 USD
Regular price
Sale price
$1.69 USD
Unit price
per
Couldn't load pickup availability
SN74ALVC162836DGVR Texas Instruments - Yeehing Electronics
20-Bit Universal Bus Driver With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.256 |
| 100 — 249 | 3.729 |
| 250 — 999 | 2.615 |
| 1,000 + | 1.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Universal Bus Functions |
| RoHS | Y |
| Logic Type | CMOS |
| Logic Family | ALVC |
| Number of Circuits | 1 |
| Propagation Delay Time | 5.5 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Function | Universal Bus Driver |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Output Type | 3-State |
| Series | SN74ALVC162836 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Supply Current - Max | 40 uA |
| High Level Output Current | - 12 mA |
| Low Level Output Current | 12 mA |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V |
| Polarity | Non-Inverting |
| Product Type | Universal Bus Functions |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| SN74ALVC162836DGVR Datasheet |
More Information
This 20-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation.
