Texas Instruments
SN74ALVCF162835VR
SN74ALVCF162835VR
Regular price
$0.64 USD
Regular price
Sale price
$0.64 USD
Unit price
per
Couldn't load pickup availability

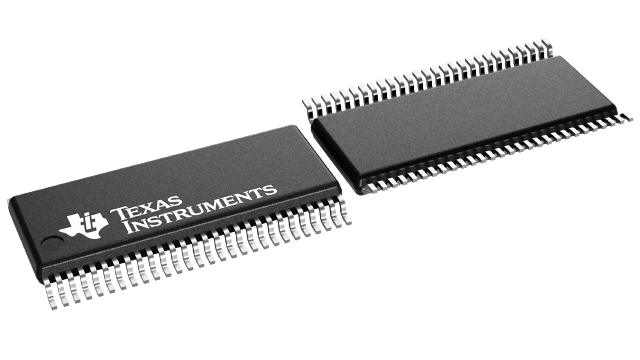

SN74ALVCF162835VR Texas Instruments - Yeehing Electronics
3.3-V CMOS 18-Bit Universal Bus Driver with 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.043 |
| 100 — 249 | 1.687 |
| 250 — 999 | 1.212 |
| 1,000 + | 0.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Universal Bus Functions |
| RoHS | Y |
| Logic Type | CMOS |
| Logic Family | ALVC |
| Number of Circuits | 1 |
| Propagation Delay Time | 5.6 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Function | Universal Bus Driver |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Output Type | 3-State |
| Quiescent Current | 100 nA |
| Series | SN74ALVCF162835 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Supply Current - Max | 40 uA |
| High Level Output Current | - 18 mA |
| Low Level Output Current | 18 mA |
| Operating Supply Current | 0.1 uA |
| Operating Supply Voltage | 2.5 V, 3.3 V |
| Polarity | Non-Inverting |
| Product Type | Universal Bus Functions |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| SN74ALVCF162835VR Datasheet |
More Information
This 18-bit universal bus driver is designed for 2.3-V to 3.6-V VCC operation.
