Texas Instruments
SN74ALVCH16823DGVR
SN74ALVCH16823DGVR
Regular price
$0.80 USD
Regular price
Sale price
$0.80 USD
Unit price
per
Couldn't load pickup availability

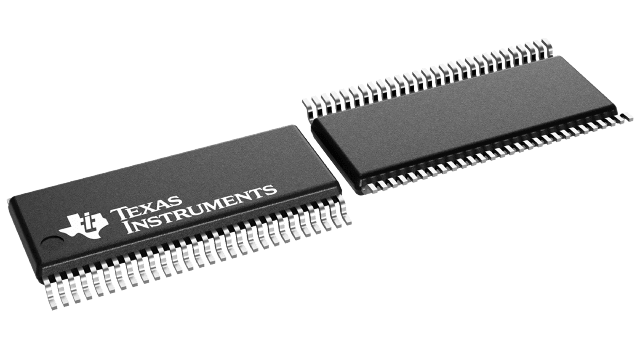

SN74ALVCH16823DGVR Texas Instruments - Yeehing Electronics
18-Bit Bus-Interface Flip-Flop With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.305 |
| 100 — 249 | 2.02 |
| 250 — 999 | 1.416 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Flip Flops |
| RoHS | Y |
| Number of Circuits | 2 |
| Logic Family | ALVC |
| Logic Type | Bus Interface Flip-Flop |
| Polarity | Non-Inverting |
| Input Type | CMOS, LVTTL |
| Output Type | 3-State |
| Propagation Delay Time | 3.5 ns |
| High Level Output Current | - 24 mA |
| Low Level Output Current | 24 mA |
| Supply Voltage - Min | 1.65 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Function | 18-Bit Bus Interface |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 40 uA |
| Series | SN74ALVCH16823 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Number of Channels | 18 |
| Number of Input Lines | 9 |
| Number of Output Lines | 3 |
| Operating Supply Voltage | 3.3 V |
| Product Type | Flip Flops |
| Reset Type | Master Reset |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74ALVCH16823DGVR Datasheet |
More Information
This 18-bit bus-interface flip-flop is designed for 1.65-V to 3.6-V VCC operation.
