Texas Instruments
SN74ALVCH16901DGGR
SN74ALVCH16901DGGR
Regular price
$1.20 USD
Regular price
Sale price
$1.20 USD
Unit price
per
Couldn't load pickup availability

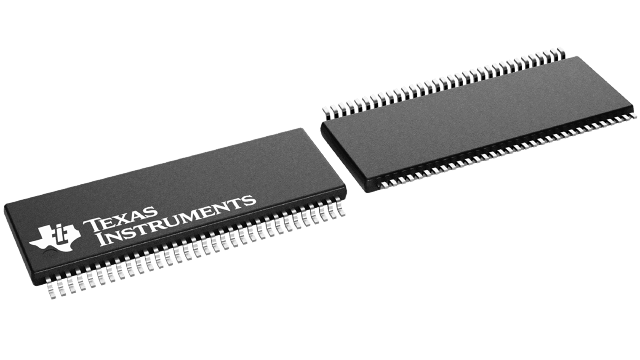

SN74ALVCH16901DGGR Texas Instruments - Yeehing Electronics
18-bit universal bus transceiver with parity generators/checkers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.45 |
| 100 — 249 | 3.023 |
| 250 — 999 | 2.12 |
| 1,000 + | 1.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Universal Bus Functions |
| RoHS | Y |
| Logic Type | CMOS |
| Logic Family | 74ALV |
| Number of Circuits | 2 |
| Propagation Delay Time | 5.8 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | TSSOP-64 |
| Packaging | Reel |
| Function | 18-Bit Universal Bus Tranceiver with Parity Checker |
| Height | 1.15 mm |
| Length | 17 mm |
| Output Type | 3-State |
| Series | SN74ALVCH16901 |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Supply Current - Max | 40 uA |
| High Level Output Current | - 24 mA |
| Low Level Output Current | 24 mA |
| Operating Supply Voltage | 1.65 V to 3.6 V |
| Polarity | Non-Inverting |
| Product Type | Universal Bus Functions |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
| SN74ALVCH16901DGGR Datasheet |
More Information
This 18-bit (dual-octal) noninverting registered transceiver is designed for 1.65-V to 3.6-V VCC operation.
