Texas Instruments

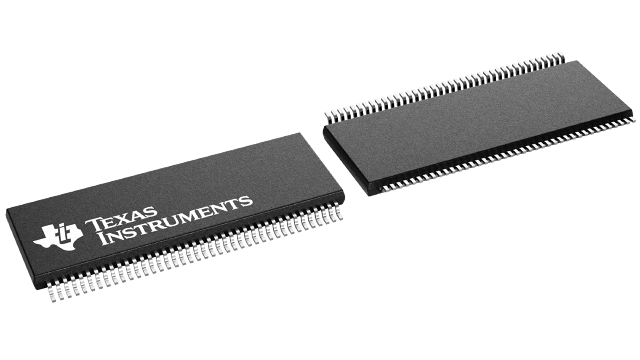

SN74ALVCHS162830GR
SN74ALVCHS162830GR
Regular price
$1.16 USD
Regular price
Sale price
$1.16 USD
Unit price
per
Couldn't load pickup availability
SN74ALVCHS162830GR Texas Instruments - Yeehing Electronics
18-ch, 2.3-V to 3.6-V buffers with bus-hold and 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.141 |
| 100 — 249 | 3.629 |
| 250 — 999 | 2.544 |
| 1,000 + | 1.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 18 Input |
| Number of Output Lines | 3 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-80 |
| Packaging | Reel |
| Function | Fanout Driver |
| Height | 1.15 mm |
| Length | 17 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Quiescent Current | 40 uA |
| Series | SN74ALVCHS162830 |
| Technology | CMOS |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Logic Family | ALVC |
| Logic Type | CMOS |
| Number of Channels | 18 |
| Supply Current - Max | 40 uA |
| High Level Output Current | - 12 mA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 12 mA |
| Operating Supply Current | 400 uA |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 4 ns, 3.5 ns |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.009351 oz |
For more information, please refer to datasheet
Documents
| SN74ALVCHS162830GR Datasheet |
More Information
This 1-bit to 2-bit address driver is designed for 2.3-V to 3.6-V VCC operation.
