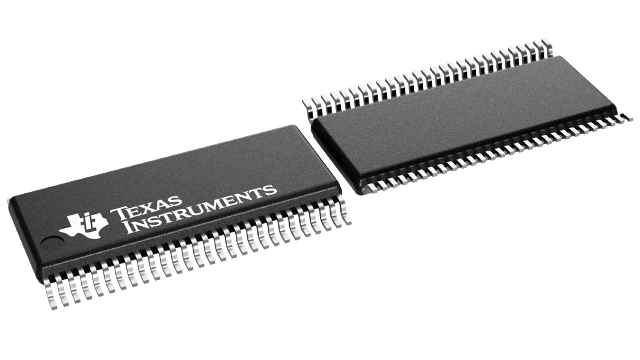

SN74ALVTH16827VR


YeeHing #: Y009-SN74ALVTH16827VR
Inventory: 5400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

SN74ALVTH16827VR Texas Instruments - Yeehing Electronics

20-ch, 2.3-V to 3.6-V buffers with bus-hold, TTL-compatible CMOS inputs and 3-state outputs

Pricing (USD)

Quantity Unit Price
1 — 99 3.967
100 — 249 3.476
250 — 999 2.437
1,000 + 1.57

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Buffers & Line Drivers
RoHS Y
Number of Input Lines 20 Input
Number of Output Lines 3 Output
Polarity Non-Inverting
Supply Voltage - Max 3.6 V
Supply Voltage - Min 2.3 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case TVSOP-56
Packaging Reel
Function Buffer/Line Driver
Height 1.05 mm
Length 11.3 mm
Operating Temperature Range - 40 C to + 85 C
Output Type 3-State
Quiescent Current 3.2 mA
Series SN74ALVTH16827
Technology BiCMOS
Width 4.4 mm
Brand Texas Instruments
Logic Family ALVT
Logic Type Buffer and Driver
Number of Channels 20
Supply Current - Max 6000 uA
High Level Output Current - 32 mA
Input Signal Type Single-Ended
Low Level Output Current 64 mA
Operating Supply Current 5 uA
Operating Supply Voltage 2.3 V to 3.6 V
Product Type Buffers & Line Drivers
Propagation Delay Time 3 ns
Factory Pack Quantity 2000
Subcategory Logic ICs
Unit Weight 0.005115 oz

For more information, please refer to datasheet

Documents

SN74ALVTH16827VR Datasheet

More Information

The 'ALVTH16827 devices are 20-bit buffers/line drivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
