Texas Instruments
SN74AUC1G02YZPR
SN74AUC1G02YZPR
Regular price
$0.10 USD
Regular price
Sale price
$0.10 USD
Unit price
per
Couldn't load pickup availability
SN74AUC1G02YZPR Texas Instruments - Yeehing Electronics
Single 2-input, 0.8-V to 2.7-V high speed NOR gate
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.474 |
| 100 — 249 | 0.322 |
| 250 — 999 | 0.248 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | NOR |
| Logic Family | 74AUC |
| Number of Gates | 1 Gate |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 9 mA |
| Low Level Output Current | 9 mA |
| Propagation Delay Time | 2.4 ns |
| Supply Voltage - Max | 2.7 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

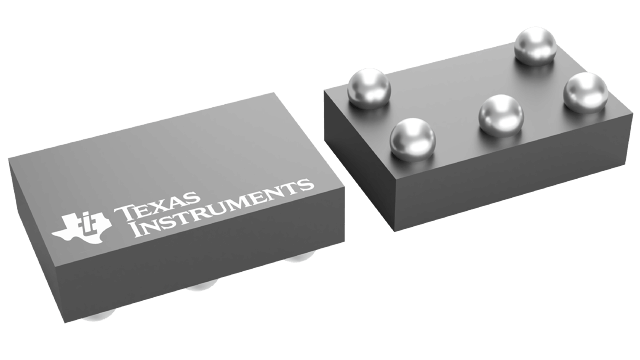

| Package / Case | DSBGA-5 |
| Packaging | Reel |
| Function | NOR |
| Height | 0.3 mm |
| Length | 1.4 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | SN74AUC1G02 |
| Width | 0.9 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Operating Supply Voltage | 1.8 V, 2.5 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| SN74AUC1G02YZPR Datasheet |
More Information
This single 2-input positive-NOR gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
