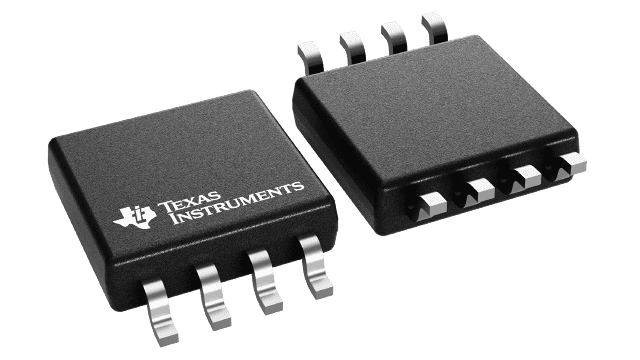

SN74AUC2G00DCTR Texas Instruments - Yeehing Electronics
2-ch, 2-input, 0.8-V to 2.7-V high speed NAND gates
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.537 |
| 100 — 249 | 0.365 |
| 250 — 999 | 0.281 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | NAND |
| Logic Family | AUC |
| Number of Gates | 2 Gate |
| Number of Input Lines | 4 Input |
| Number of Output Lines | 2 Output |
| High Level Output Current | - 9 mA |
| Low Level Output Current | 9 mA |
| Propagation Delay Time | 1.6 ns |
| Supply Voltage - Max | 2.7 V |
| Supply Voltage - Min | 800 mV |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SM-8 |
| Packaging | Reel |
| Function | NAND |
| Height | 1.29 mm |
| Length | 2.95 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Current | 8 mA |
| Output Voltage | 2.7 V |
| Series | SN74AUC2G00 |
| Width | 2.8 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Operating Supply Voltage | 1.8 V, 2.5 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000825 oz |
For more information, please refer to datasheet
Documents
| SN74AUC2G00DCTR Datasheet |
More Information
This dual 2-input positive-NAND gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
