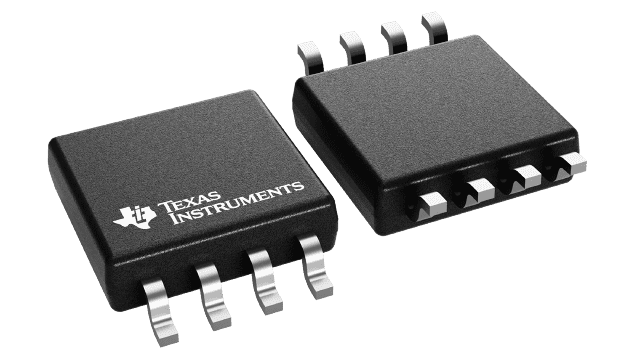

SN74AUC2G02DCTR Texas Instruments - Yeehing Electronics

2-ch, 2-input, 0.8-V to 2.7-V high speed NOR gates

Pricing (USD)

Quantity	Unit Price
1 — 99	0.715
100 — 249	0.486
250 — 999	0.375
1,000 +	0.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Logic Gates
RoHS	Y
Product	Single-Function Gate
Logic Function	NOR
Logic Family	74AUC
Number of Gates	2 Gate
Number of Input Lines	2 Input
Number of Output Lines	1 Output
High Level Output Current	- 9 mA
Low Level Output Current	9 mA
Propagation Delay Time	2.4 ns
Supply Voltage - Max	2.7 V
Supply Voltage - Min	0.8 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	SM-8
Packaging	Reel
Function	NOR
Height	1.29 mm
Length	2.95 mm
Operating Temperature Range	- 40 C to + 85 C
Series	SN74AUC2G02
Width	2.8 mm
Brand	Texas Instruments
Logic Type	True
Operating Supply Voltage	1.8 V, 2.5 V
Product Type	Logic Gates
Factory Pack Quantity	3000
Subcategory	Logic ICs
Unit Weight	0.000825 oz

For more information, please refer to datasheet

Documents

SN74AUC2G02DCTR Datasheet

More Information

This dual 2-input positive-NOR gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
