Texas Instruments
SN74AUC2G66DCUR
SN74AUC2G66DCUR
Regular price
$0.10 USD
Regular price
Sale price
$0.10 USD
Unit price
per
Couldn't load pickup availability
SN74AUC2G66DCUR Texas Instruments - Yeehing Electronics

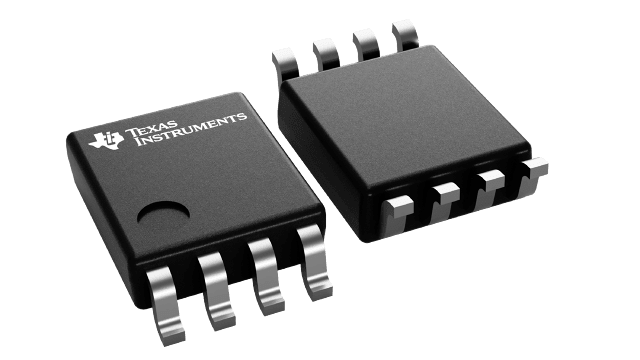

2.5-V, 1:1 (SPST), 2-channel analog switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.41 |
| 100 — 249 | 0.279 |
| 250 — 999 | 0.215 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 2 Switch |
| Configuration | 2 x SPST |
| On Resistance - Max | 15 Ohms |
| Switch Voltage - Max | 2.3 V |
| On Time - Max | 2.3 ns |
| Off Time - Max | 2 ns |
| Operating Supply Voltage | 800 mV to 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VSSOP-8 |
| Packaging | Reel |
| Height | 0.85 mm |
| Length | 2.3 mm |
| Series | SN74AUC2G66 |
| Supply Type | Single Supply |
| Width | 2 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 10 uA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 2.7 V |
| Supply Voltage - Min | 800 mV |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.000353 oz |
For more information, please refer to datasheet
Documents
| SN74AUC2G66DCUR Datasheet |
More Information
This dual analog switch is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.1-V to 2.7-V VCC operation.
