Texas Instruments

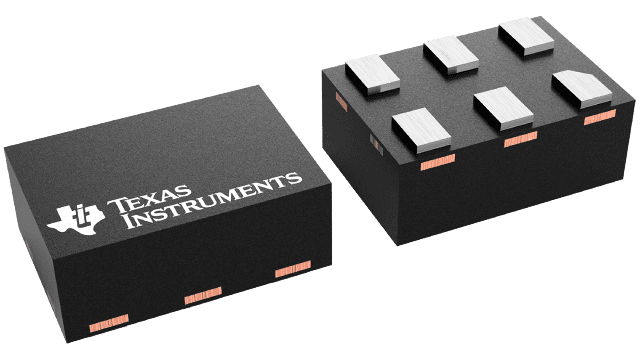

SN74AUP1G125DRYR
SN74AUP1G125DRYR
Regular price
$0.06 USD
Regular price
Sale price
$0.06 USD
Unit price
per
Couldn't load pickup availability
SN74AUP1G125DRYR Texas Instruments - Yeehing Electronics
Single 0.8-V to 3.6-V low power buffer with 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.201 |
| 100 — 249 | 0.137 |
| 250 — 999 | 0.105 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 1 Input |
| Number of Output Lines | 1 Output |
| Polarity | Inverting, Non-Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SON-6 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Series | SN74AUP1G125 |
| Brand | Texas Instruments |
| Logic Type | True |
| Number of Channels | 1 Channel |
| Operating Supply Current | 500 nA |
| Product Type | Buffers & Line Drivers |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Tradename | NanoStar |
| Unit Weight | 0.000078 oz |
For more information, please refer to datasheet
Documents
| SN74AUP1G125DRYR Datasheet |
More Information
The SN74AUP1G125 bus buffer gate is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high. This device has the input-disable feature, which allows floating input signals.
