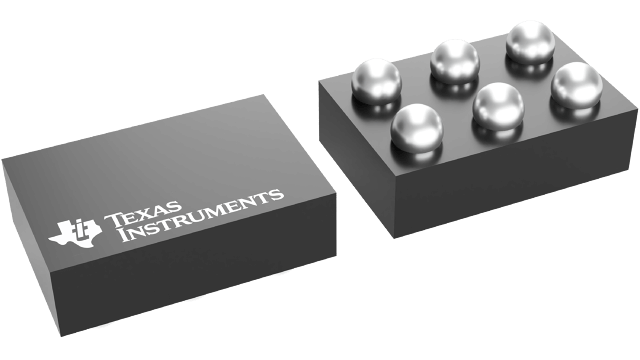

SN74AUP1G240YFPR Texas Instruments - Yeehing Electronics
Single 0.8-V to 3.6-V low power inverter with 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.462 |
| 100 — 249 | 0.314 |
| 250 — 999 | 0.242 |
| 1,000 + | 0.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 1 Input |
| Number of Output Lines | 1 Output |
| Polarity | Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Series | SN74AUP1G240 |
| Brand | Texas Instruments |
| Logic Family | AUP |
| Logic Type | CMOS |
| Number of Channels | 1 Channel |
| High Level Output Current | - 4 mA |
| Low Level Output Current | 4 mA |
| Operating Supply Current | 500 nA |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 16.1 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| SN74AUP1G240YFPR Datasheet |
More Information
The AUP family is TIs premier solution to the industrys low power needs in battery-powered portable applications. This family assures a very low static and dynamic power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in an increased battery life. This product also maintains excellent signal integrity (see AUP – The Lowest-Power Family ).
