Texas Instruments

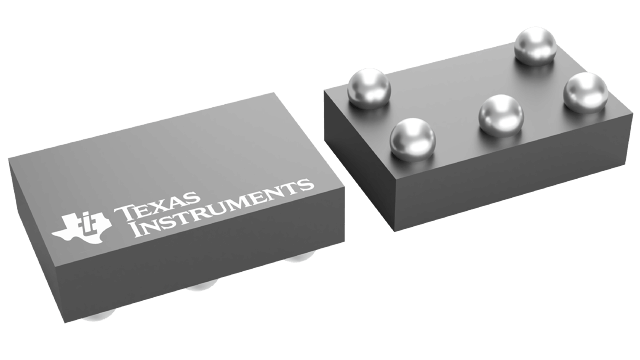

SN74AUP1G240YZPR
SN74AUP1G240YZPR
Regular price
$0.24 USD
Regular price
Sale price
$0.24 USD
Unit price
per
Couldn't load pickup availability
SN74AUP1G240YZPR Texas Instruments - Yeehing Electronics
Single 0.8-V to 3.6-V low power inverter with 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.448 |
| 100 — 249 | 0.304 |
| 250 — 999 | 0.235 |
| 1,000 + | 0.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 1 Input |
| Number of Output Lines | 1 Output |
| Polarity | Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-5 |
| Packaging | Reel |
| Function | Buffer/Line Driver |
| Height | 0.3 mm |
| Length | 1.4 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Quiescent Current | 500 nA |
| Series | SN74AUP1G240 |
| Technology | CMOS |
| Width | 0.9 mm |
| Brand | Texas Instruments |
| Logic Family | AUP |
| Logic Type | CMOS |
| Number of Channels | 1 Channel |
| Supply Current - Max | 0.5 uA |
| High Level Output Current | - 4 mA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 4 mA |
| Operating Supply Current | 0.5 uA |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 16.1 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| SN74AUP1G240YZPR Datasheet |
More Information
The AUP family is TIs premier solution to the industrys low power needs in battery-powered portable applications. This family assures a very low static and dynamic power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in an increased battery life. This product also maintains excellent signal integrity (see AUP – The Lowest-Power Family ).
