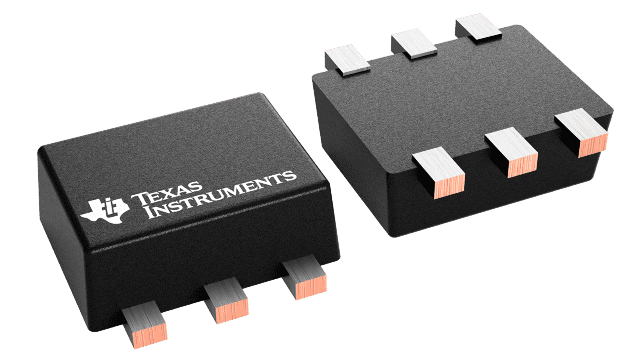

SN74AUP1G57DRLR Texas Instruments - Yeehing Electronics

Low-Power Configurable Multiple-Function Gate

Pricing (USD)

Quantity	Unit Price
1 — 99	0.376
100 — 249	0.255
250 — 999	0.197
1,000 +	0.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Logic Gates
RoHS	Y
Product	Configurable Multiple-Function Gate
Logic Function	Configurable
Logic Family	74AUP
Number of Gates	1 Gate
Number of Input Lines	2 Input
Number of Output Lines	1 Output
High Level Output Current	- 4 mA
Low Level Output Current	4 mA
Propagation Delay Time	21.4 ns
Supply Voltage - Max	3.6 V
Supply Voltage - Min	0.8 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	SOT-5X3-6
Packaging	Reel
Function	Multi Function
Height	0.55 mm
Input Type	Schmitt Trigger
Length	1.6 mm
Operating Temperature Range	- 40 C to + 85 C
Series	SN74AUP1G57
Width	1.2 mm
Brand	Texas Instruments
Logic Type	True
Operating Supply Voltage	1.8 V, 2.5 V, 3.3 V
Product Type	Logic Gates
Factory Pack Quantity	4000
Subcategory	Logic ICs
Unit Weight	0.000099 oz

For more information, please refer to datasheet

Documents

SN74AUP1G57DRLR Datasheet

More Information

The SN74AUP1G57 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions AND, OR, NAND, NOR, XNOR, inverter, and noninverter. All inputs can be connected to VCC or GND.
