Texas Instruments

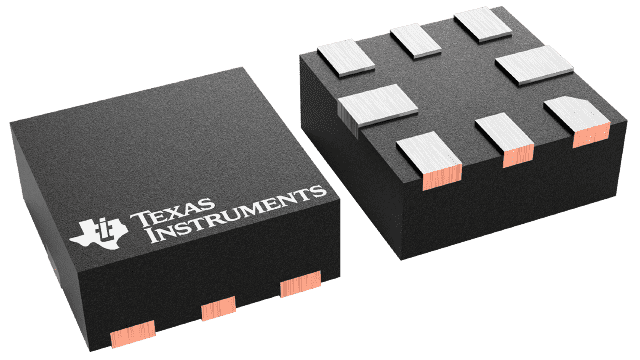

SN74AUP1G74RSER
SN74AUP1G74RSER
Regular price
$0.08 USD
Regular price
Sale price
$0.08 USD
Unit price
per
Couldn't load pickup availability
SN74AUP1G74RSER Texas Instruments - Yeehing Electronics
Low-Power Single Positive-Edge-Triggered D-Type Flip-Flop
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.342 |
| 100 — 249 | 0.232 |
| 250 — 999 | 0.179 |
| 1,000 + | 0.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Flip Flops |
| RoHS | Y |
| Number of Circuits | 1 |
| Logic Family | AUP |
| Logic Type | True |
| Polarity | Inverting/Non-Inverting |
| Input Type | CMOS |
| Output Type | CMOS |
| Propagation Delay Time | 5 ns |
| High Level Output Current | - 4 mA |
| Low Level Output Current | 4 mA |
| Supply Voltage - Min | 0.8 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-8 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | SN74AUP1G74 |
| Brand | Texas Instruments |
| Product Type | Flip Flops |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000187 oz |
For more information, please refer to datasheet
Documents
| SN74AUP1G74RSER Datasheet |
More Information
The AUP family is TI's premier solution to the industry's low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in ).
