Texas Instruments

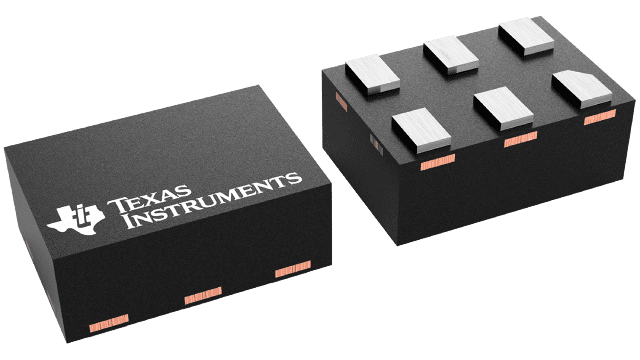

SN74AUP1T57DRYR
SN74AUP1T57DRYR
Regular price
$0.11 USD
Regular price
Sale price
$0.11 USD
Unit price
per
Couldn't load pickup availability
SN74AUP1T57DRYR Texas Instruments - Yeehing Electronics
Single-Supply Voltage Translator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.402 |
| 100 — 249 | 0.273 |
| 250 — 999 | 0.211 |
| 1,000 + | 0.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Type | Voltage Level Translators |
| Propagation Delay Time | 10 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 800 mV |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SON-6 |
| Packaging | Reel |
| Features | Schmitt trigger, Partial power down (Ioff), Single supply, Configurable gate |
| Input Type | CMOS |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | CMOS |
| Series | SN74AUP1T57 |
| Brand | Texas Instruments |
| Logic Type | True |
| Number of Channels | 1 Channel |
| High Level Output Current | +/- 4 mA |
| Low Level Output Current | +/- 4 mA |
| Operating Supply Current | 900 nA |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000078 oz |
For more information, please refer to datasheet
Documents
| SN74AUP1T57DRYR Datasheet |
More Information
AUP technology is the industrys lowest-power logic technology designed for use in battery-operated or battery backed-up equipment. The SN74AUP1T57 is designed for logic-level translation applications with input switching levels that accept 1.8-V LVCMOS signals, while operating from either a single 3.3-V or 2.5-V VCC supply.
