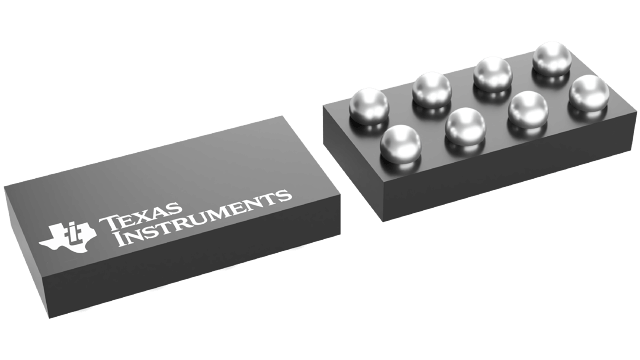

SN74AUP2G00YFPR Texas Instruments - Yeehing Electronics
2-ch, 2-input, 0.8-V to 3.6-V low power NAND gates
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.59 |
| 100 — 249 | 0.454 |
| 250 — 999 | 0.334 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | NAND |
| Logic Family | 74AUP |
| Number of Gates | 2 Gate |
| Number of Input Lines | 4 Input |
| Number of Output Lines | 2 Output |
| High Level Output Current | -4 mA |
| Low Level Output Current | 4 mA |
| Propagation Delay Time | 5.9 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 800 mV |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Packaging | Reel |
| Height | 0.5 mm |
| Input Type | CMOS |
| Length | 1.59 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Current | 20 mA |
| Output Type | CMOS |
| Output Voltage | 0 V to 3.6 V |
| Series | SN74AUP2G00 |
| Width | 0.79 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Number of Bits | 2 bit |
| Operating Supply Voltage | 800 mV to 3.6 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| SN74AUP2G00YFPR Datasheet |
More Information
The AUP family is TIs premier solution to the industrys low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life (see Figure 1). This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in Figure 2).
