Texas Instruments
SN74AUP2G08DQER
SN74AUP2G08DQER
Regular price
$0.08 USD
Regular price
Sale price
$0.08 USD
Unit price
per
Couldn't load pickup availability

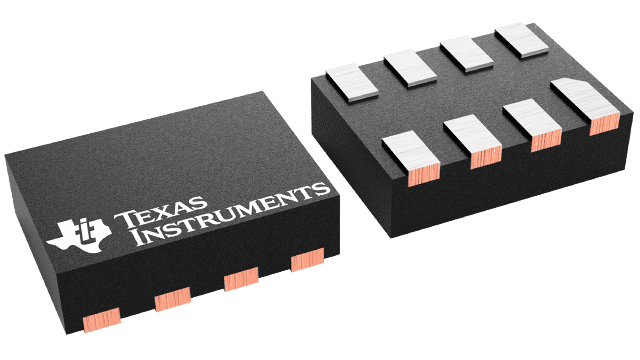

SN74AUP2G08DQER Texas Instruments - Yeehing Electronics
2-ch, 2-input, 0.8-V to 3.6-V low power AND gates
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.385 |
| 100 — 249 | 0.261 |
| 250 — 999 | 0.202 |
| 1,000 + | 0.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | AND |
| Number of Gates | 2 Gate |
| High Level Output Current | - 4 mA |
| Low Level Output Current | 4 mA |
| Propagation Delay Time | 19.8 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | X2SON-8 |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 2.4 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 3.6 V |
| Series | SN74AUP2G08 |
| Width | 2.1 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Operating Supply Current | 900 nA |
| Operating Supply Voltage | 0.8 V to 3.6 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000042 oz |
For more information, please refer to datasheet
Documents
| SN74AUP2G08DQER Datasheet |
More Information
The AUP family is TIs premier solution to the industrys low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life (see Figure 1). This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in Figure 2).
