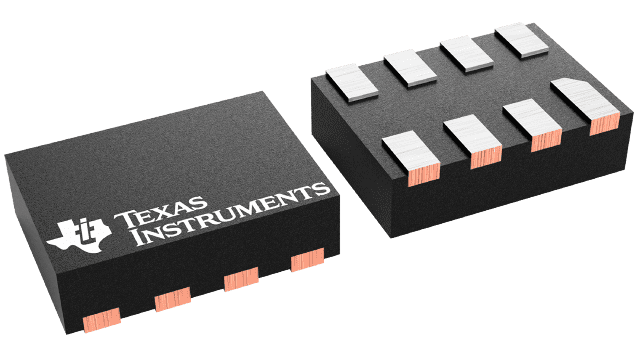

SN74AUP3G06DQER Texas Instruments - Yeehing Electronics
3-ch, 0.8-V to 3.6-V low power inverters with open-drain outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.183 |
| 100 — 249 | 0.141 |
| 250 — 999 | 0.104 |
| 1,000 + | 0.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 3 Input |
| Number of Output Lines | 3 Output |
| Polarity | Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 800 mV |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | X2SON-8 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | Open Drain |
| Series | SN74AUP3G06 |
| Brand | Texas Instruments |
| Logic Family | AUP |
| Logic Type | Inverting |
| Number of Channels | 3 Channel |
| Low Level Output Current | 4 mA |
| Operating Supply Current | 500 nA |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 6.5 ns |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000042 oz |
For more information, please refer to datasheet
Documents
| SN74AUP3G06DQER Datasheet |
More Information
The AUP family is TIs premier solution to the industrys low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life (see Figure 1). This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in Figure 2).
