Texas Instruments

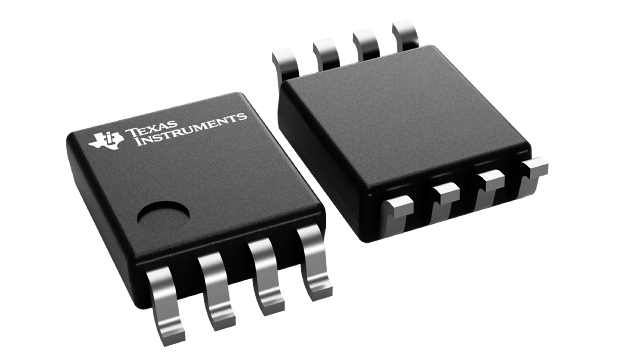

SN74AUP3G14DCUR
SN74AUP3G14DCUR
Regular price
$0.05 USD
Regular price
Sale price
$0.05 USD
Unit price
per
Couldn't load pickup availability
SN74AUP3G14DCUR Texas Instruments - Yeehing Electronics
3-ch, 0.8-V to 3.6-V low power inverters with Schmitt-Trigger inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.193 |
| 100 — 249 | 0.148 |
| 250 — 999 | 0.109 |
| 1,000 + | 0.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Inverters |
| RoHS | Y |
| Number of Circuits | 3 Circuit |
| Logic Type | Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VSSOP-8 |
| Packaging | Reel |
| Input Type | Schmitt Trigger |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | Schmitt Trigger |
| Series | SN74AUP3G14 |
| Brand | Texas Instruments |
| High Level Output Current | - 20 mA |
| Low Level Output Current | 20 uA |
| Operating Supply Voltage | 0.8 V to 3.6 V |
| Product Type | Inverters |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001058 oz |
For more information, please refer to datasheet
Documents
| SN74AUP3G14DCUR Datasheet |
More Information
The AUP family is TI's premier solution to the industry's low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity.
