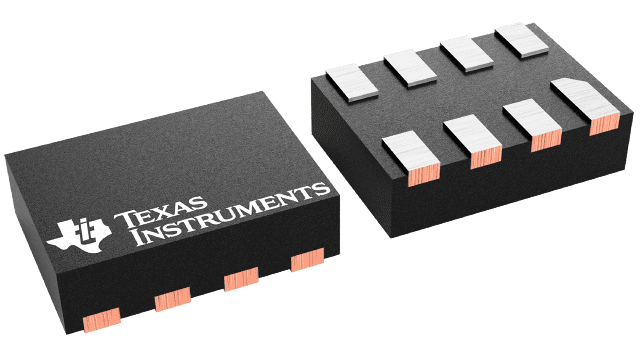

SN74AUP3G17DQER Texas Instruments - Yeehing Electronics
3-ch, 0.8-V to 3.6-V low power buffers with Schmitt-Trigger inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.379 |
| 100 — 249 | 0.257 |
| 250 — 999 | 0.199 |
| 1,000 + | 0.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 3 Input |
| Number of Output Lines | 3 Output |
| Polarity | Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | X2SON-8 |
| Packaging | Reel |
| Function | Schmitt Trigger Buffer |
| Height | 0.37 mm |
| Length | 1.4 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 500 nA |
| Series | SN74AUP3G17 |
| Technology | CMOS |
| Width | 1 mm |
| Brand | Texas Instruments |
| Logic Family | AUP |
| Logic Type | True |
| Number of Channels | 8 |
| Supply Current - Max | 0.5 uA |
| High Level Output Current | - 20 uA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 20 uA |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 22.7 ns |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000042 oz |
For more information, please refer to datasheet
Documents
| SN74AUP3G17DQER Datasheet |
More Information
The AUP family is TIs premier solution to the industrys low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity.
