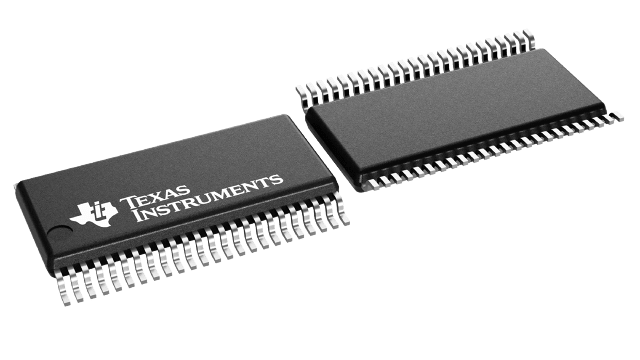

SN74AVC16245DGVR Texas Instruments - Yeehing Electronics

16-Bit Bus Transceiver With 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	3.513
100 — 249	3.078
250 — 999	2.158
1,000 +	1.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Bus Transceivers
RoHS	Y
Logic Family	AVC
Input Level	CMOS
Output Level	CMOS
Output Type	3-State
High Level Output Current	- 12 mA
Low Level Output Current	12 mA
Propagation Delay Time	4 ns
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.4 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	TVSOP-48
Packaging	Reel
Function	16-bit Bus Transceiver
Height	1.05 mm
Length	9.7 mm
Number of Circuits	2
Operating Temperature Range	- 40 C to + 85 C
Product	Standard Transceiver
Series	SN74AVC16245
Technology	CMOS
Width	4.4 mm
Brand	Texas Instruments
Mounting Style	SMD/SMT
Number of Channels	16
Operating Supply Voltage	1.4 V to 3.6 V
Polarity	Non-Inverting
Product Type	Bus Transceivers
Factory Pack Quantity	2000
Subcategory	Logic ICs
Unit Weight	0.004356 oz

For more information, please refer to datasheet

Documents

SN74AVC16245DGVR Datasheet

More Information

A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOCTM) Circuitry Technology and Applications, literature number SCEA009.
