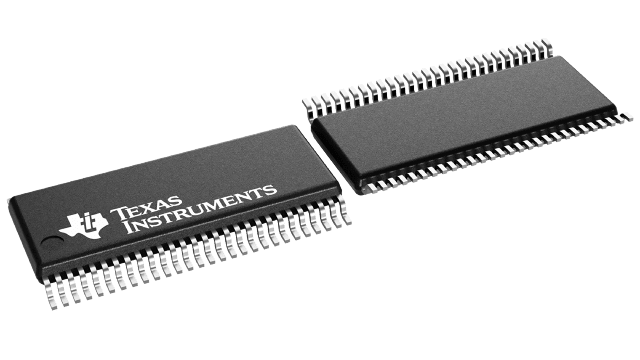

SN74AVC16646DGVR Texas Instruments - Yeehing Electronics
16-Bit Bus Transceiver And Register With 3-State Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.295 |
100 — 249 | 2.887 |
250 — 999 | 2.024 |
1,000 + | 1.14 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Bus Transceivers |
RoHS | Y |
Logic Family | 74AVC |
Input Level | CMOS |
Output Level | CMOS |
Output Type | 3-State |
High Level Output Current | - 12 mA |
Low Level Output Current | 12 mA |
Propagation Delay Time | 6.1 ns |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 1.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Package / Case | TVSOP-56 |
Packaging | Reel |
Function | 16-Bit Bus Transceiver / Register |
Height | 1.05 mm |
Length | 11.3 mm |
Number of Circuits | 2 |
Operating Temperature Range | - 40 C to + 85 C |
Product | CMOS |
Series | SN74AVC16646 |
Technology | CMOS |
Width | 4.4 mm |
Brand | Texas Instruments |
Mounting Style | SMD/SMT |
Number of Channels | 16 |
Operating Supply Voltage | 1.2 V to 3.6 V |
Pd - Power Dissipation | 120 mW |
Polarity | Non-Inverting |
Product Type | Bus Transceivers |
Factory Pack Quantity | 2000 |
Subcategory | Logic ICs |
Triggering Type | Positive Edge |
Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
SN74AVC16646DGVR Datasheet |
More Information
A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOCTM) Circuitry Technology and Applications, literature number SCEA009.
