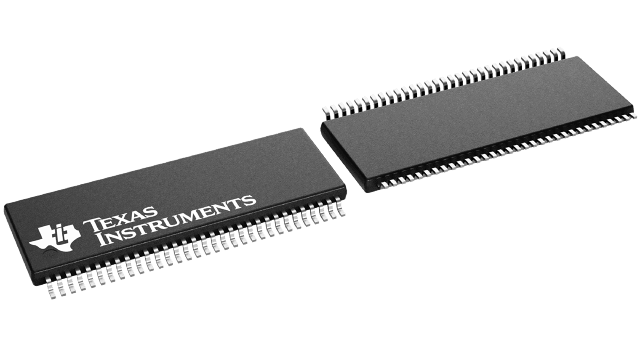

SN74AVC16722DGGR Texas Instruments - Yeehing Electronics
22-Bit Flip-Flop With 3-State Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.171 |
100 — 249 | 3.655 |
250 — 999 | 2.563 |
1,000 + | 1.45 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Flip Flops |
RoHS | Y |
Number of Circuits | 1 |
Logic Family | AVC |
Logic Type | Flip-Flop |
Polarity | Non-Inverting |
Input Type | CMOS, TTL |
Output Type | 3-State |
Propagation Delay Time | 5.4 ns |
High Level Output Current | - 12 mA |
Low Level Output Current | 12 mA |
Supply Voltage - Min | 1.4 V |
Supply Voltage - Max | 3.6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | TSSOP-64 |
Packaging | Reel |
Function | 22-Bit |
Height | 1.15 mm |
Length | 17 mm |
Operating Temperature Range | - 40 C to + 85 C |
Series | SN74AVC16722 |
Width | 6.1 mm |
Brand | Texas Instruments |
Number of Channels | 22 |
Number of Input Lines | 4 |
Number of Output Lines | 1 |
Operating Supply Voltage | 3.3 V |
Product Type | Flip Flops |
Factory Pack Quantity | 2000 |
Subcategory | Logic ICs |
Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
SN74AVC16722DGGR Datasheet |
More Information
A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOCTM ) Circuitry Technology and Applications, literature number SCEA009.
