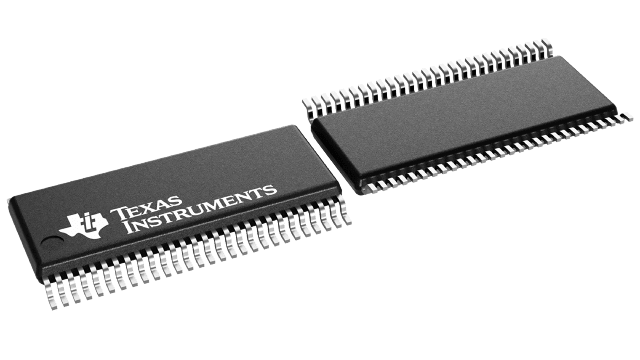

SN74AVC16827DGVR Texas Instruments - Yeehing Electronics
20-ch, 1.2-V to 3.6-V buffers with 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.111 |
| 100 — 249 | 2.726 |
| 250 — 999 | 1.911 |
| 1,000 + | 1.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 20 Input |
| Number of Output Lines | 3 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Function | Buffer/Line Driver |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Quiescent Current | 40 uA |
| Series | SN74AVC16827 |
| Technology | CMOS |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Family | AVC |
| Logic Type | CMOS |
| Number of Channels | 20 |
| Supply Current - Max | 40 uA |
| High Level Output Current | - 24 mA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 24 mA |
| Operating Supply Current | 40 uA |
| Operating Supply Voltage | 1.8 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 2.9 ns, 1.9 ns, 1.7 ns |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74AVC16827DGVR Datasheet |
More Information
A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOCTM) Circuitry Technology and Applications, literature number SCEA009.
