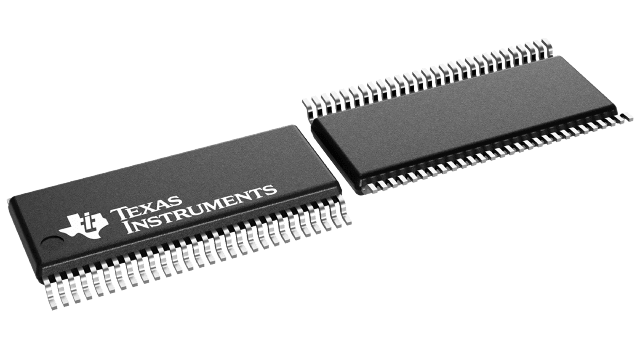

SN74AVC16834DGVR Texas Instruments - Yeehing Electronics
18-Bit Universal Bus Driver With 3-State Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.368 |
100 — 249 | 1.198 |
250 — 999 | 0.84 |
1,000 + | 0.47 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Universal Bus Functions |
RoHS | Y |
Logic Type | CMOS |
Logic Family | AVC |
Number of Circuits | 1 |
Propagation Delay Time | 6 ns |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 1.4 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Package / Case | TVSOP-56 |
Packaging | Reel |
Function | Universal Bus Driver |
Height | 1.05 mm |
Length | 11.3 mm |
Output Type | 3-State |
Series | SN74AVC16834 |
Width | 4.4 mm |
Brand | Texas Instruments |
Mounting Style | SMD/SMT |
High Level Output Current | - 12 mA |
Low Level Output Current | 12 mA |
Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V |
Polarity | Non-Inverting |
Product Type | Universal Bus Functions |
Factory Pack Quantity | 2000 |
Subcategory | Logic ICs |
Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
SN74AVC16834DGVR Datasheet |
More Information
A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOC) Circuitry Technology and Applications, literature number SCEA009.
