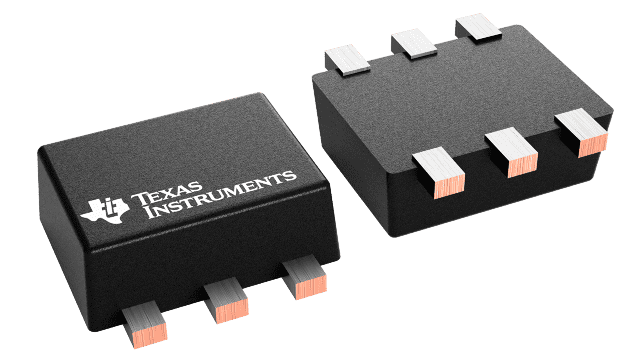

SN74AVC1T45DRLR Texas Instruments - Yeehing Electronics
Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and 3-State Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.517 |
100 — 249 | 0.351 |
250 — 999 | 0.271 |
1,000 + | 0.13 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Translation - Voltage Levels |
RoHS | Y |
Propagation Delay Time | 5.6 ns |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 1.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | SOT-5X3-6 |
Packaging | Reel |
Features | Partial power down (Ioff), Over-voltage tolerant inputs, Output enable |
Operating Temperature Range | - 40 C to + 85 C |
Output Type | 3-State |
Series | SN74AVC1T45 |
Brand | Texas Instruments |
Logic Family | AVC |
Logic Type | True |
High Level Output Current | - 12 mA |
Low Level Output Current | 12 mA |
Product Type | Translation - Voltage Levels |
Factory Pack Quantity | 4000 |
Subcategory | Logic ICs |
Unit Weight | 0.000099 oz |
For more information, please refer to datasheet
Documents
SN74AVC1T45DRLR Datasheet |
More Information
This single-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC1T45 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. It is operational with VCCA/VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage, bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.
