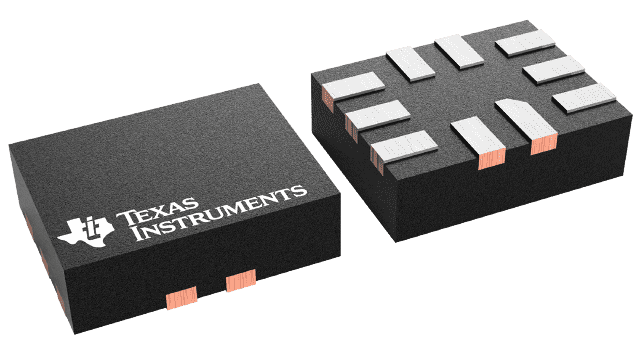

SN74AVC2T245RSWR Texas Instruments - Yeehing Electronics
Dual-Bit, 2-DIR pin Dual-Supply Bus Transceiver w/ Configurable Voltage Translation, 3-State Output
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.798 |
100 — 249 | 0.614 |
250 — 999 | 0.452 |
1,000 + | 0.23 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Translation - Voltage Levels |
RoHS | Y |
Propagation Delay Time | 5.1 ns |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 1.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | UQFN-10 |
Packaging | Reel |
Features | Partial power down (Ioff), Over-voltage tolerant inputs, Output enable |
Operating Temperature Range | - 40 C to + 85 C |
Output Type | 3-State |
Series | SN74AVC2T245 |
Brand | Texas Instruments |
Logic Family | AVC |
Logic Type | True |
High Level Output Current | - 12 mA |
Low Level Output Current | 12 mA |
Product Type | Translation - Voltage Levels |
Factory Pack Quantity | 3000 |
Subcategory | Logic ICs |
Unit Weight | 0.000215 oz |
For more information, please refer to datasheet
Documents
SN74AVC2T245RSWR Datasheet |
More Information
This dual-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V voltage nodes.
