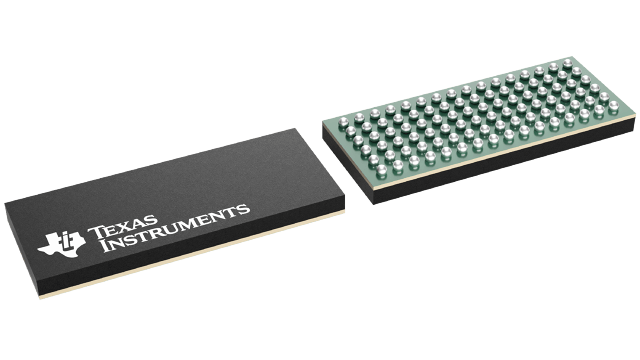

SN74AVC32T245NMJR Texas Instruments - Yeehing Electronics
32-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.192 |
| 100 — 249 | 2.797 |
| 250 — 999 | 1.961 |
| 1,000 + | 3.09 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SN74AVC32T245NMJR Datasheet |
More Information
This 32-bit noninverting bus transceiver uses two separate, configurable power-supply rails. The SN74AVC32T245 device is optimized to operate with VCCA/VCCB set from 1.4 V to 3.6 V. It is operational with VCCA/VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA and accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB and accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V voltage nodes.
