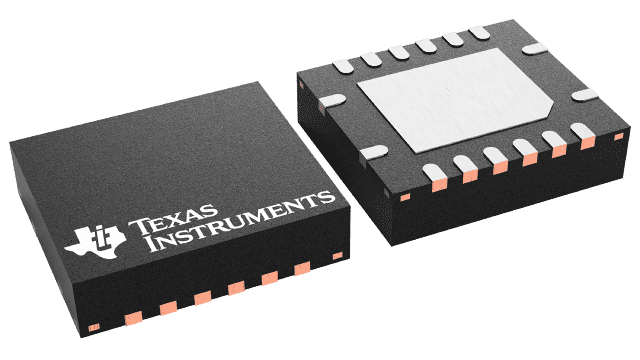

SN74AVC4T245RGYR Texas Instruments - Yeehing Electronics

4-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.973
100 — 249	0.749
250 — 999	0.551
1,000 +	0.28

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Translation - Voltage Levels
RoHS	Y
Propagation Delay Time	2.9 ns
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-16
Packaging	Reel
Data Rate	380 Mb/s
Features	Partial power down (Ioff), Over-voltage tolerant inputs, Output enable
Operating Temperature Range	- 40 C to + 85 C
Output Type	3-State
Series	SN74AVC4T245
Brand	Texas Instruments
Logic Family	74AVC
Logic Type	CMOS
High Level Output Current	12 mA
Low Level Output Current	12 mA
Moisture Sensitive	Yes
Product Type	Translation - Voltage Levels
Factory Pack Quantity	3000
Subcategory	Logic ICs
Unit Weight	0.001305 oz

For more information, please refer to datasheet

Documents

SN74AVC4T245RGYR Datasheet

More Information

This 4-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. The SN74AVC4T245 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. It is operational with VCCA/VCCB as low as 1.2 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.
