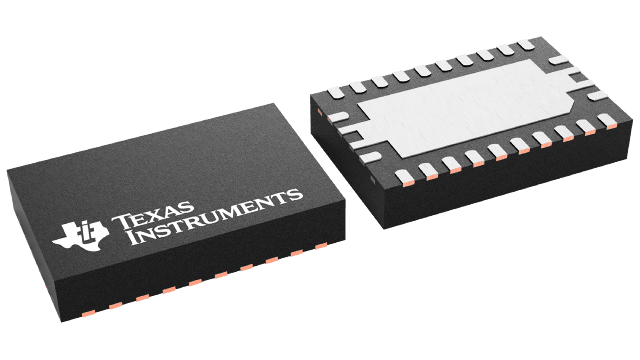

SN74AVC8T245RHLR Texas Instruments - Yeehing Electronics

8-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.169
100 — 249	0.966
250 — 999	0.694
1,000 +	0.42

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Translation - Voltage Levels
RoHS	Y
Propagation Delay Time	2.5 ns
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-24
Packaging	Reel
Data Rate	320 Mb/s
Features	Partial power down (Ioff), Over-voltage tolerant inputs, Output enable
Operating Temperature Range	- 40 C to + 125 C
Output Type	3-State
Series	SN74AVC8T245
Brand	Texas Instruments
Logic Family	AVC
Logic Type	CMOS
High Level Output Current	12 mA
Low Level Output Current	12 mA
Moisture Sensitive	Yes
Product Type	Translation - Voltage Levels
Factory Pack Quantity	1000
Subcategory	Logic ICs
Part # Aliases	HPA00720RHLR
Unit Weight	0.001767 oz

For more information, please refer to datasheet

Documents

SN74AVC8T245RHLR Datasheet

More Information

This 8-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC8T245 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. The device is operational with VCCA/VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.
