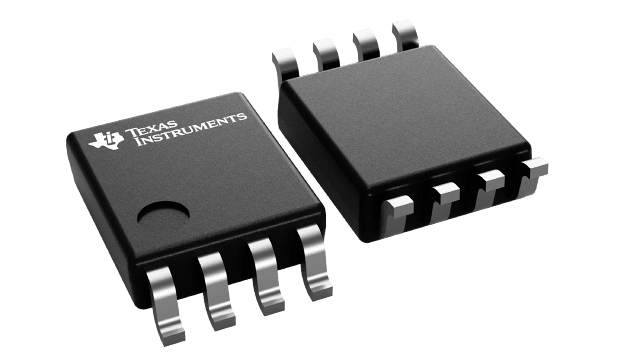

SN74AVCH2T45DCUT Texas Instruments - Yeehing Electronics

Dual-Bit Dual-Supply Bus Transceiver With Configurable Voltage Translation Aan 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.097
100 — 249	0.844
250 — 999	0.621
1,000 +	0.31

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Translation - Voltage Levels
RoHS	Y
Propagation Delay Time	5.4 ns
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VSSOP-8
Packaging	Reel
Features	Partial power down (Ioff), Over-voltage tolerant inputs, Bus-Hold
Operating Temperature Range	- 40 C to + 85 C
Output Type	3-State
Series	SN74AVCH2T45
Brand	Texas Instruments
Logic Family	74AVCH
Logic Type	True
High Level Output Current	- 12 mA
Low Level Output Current	12 mA
Product Type	Translation - Voltage Levels
Factory Pack Quantity	250
Subcategory	Logic ICs
Unit Weight	0.000339 oz

For more information, please refer to datasheet

Documents

SN74AVCH2T45DCUT Datasheet

More Information

This 2-bit non-inverting bus transceiver uses two separate configurable power-supply rails. The A ports are designed to track VCCA and accepts any supply voltage from 1.2 V to 3.6 V. The B ports are designed to track VCCB and accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation and level-shifting between any of the 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V voltage nodes.
